AD620SQ/883B Instrumentation Amplifiers IC LOW POWER IN AMP Chip

1pcs
MOQ
Negotiated
Price
AD620SQ/883B Instrumentation Amplifiers IC LOW POWER IN AMP Chip
Features Gallery Product Description Request A Quote
Features
Specifications
Moisture Sensitivity Level (MSL): 1 (Unlimited)
RoHS: Yes
Date Code: 22+
Factory Pack Quantity: 48/Tube
High Light:

AD620SQ/883B

,

Instrumentation Amplifiers IC

,

LOW POWER IN AMP Chip

Basic Infomation
Place of Origin: PHILIPPINES
Brand Name: Analog Devices Inc
Model Number: AD620SQ/883B
Payment & Shipping Terms
Packaging Details: 48/Tube
Delivery Time: 1-2 work days
Payment Terms: T/T,Escrow
Supply Ability: 3000pcs
Product Description

AD620SQ/883B Instrumentation Amplifiers IC,LOW POWER IN AMP Chip Lead Free Electronic Components

This is a component that can amplify signals in two channels. The Analog Devices instrumentation amplifier AD620SQ/883B differential amplifier can accomplish just that! Its maximum power dissipation is 650 mW. Its typical dual supply voltage is ±3|±5|±9|±12|±15 V, with a minimum of ±2.3 V and maximum of ±18 V. This part has a minimum operating temperature of -55 °C and a maximum of 125 °C. It has a single channel per chip. This device uses dual power supplies.

As a professional electronic components distributor we can supply more than 3000pcs in stock of AD620SQ/883B Instrumentation Amplifiers IC,LOW POWER IN AMP Chip Lead Free Electronic Components.Welcome to contact our sales representative if you need this part,we will give you a surprise price.We have assembled a team with rich experience and expertise to understand and meet your needs. We sale high-quality new original items only,all shipments have to undergo stringent QA procedures. We have strong purchasing and supply sources and offer one-stop service for hard-to-find, obsolete and long lead-time parts also.



General Description:

Manufacturer: Analog Devices Inc.
Product Category: Instrumentation Amplifiers
Series: AD620
Number of Channels: 1 Channel
3 dB Bandwidth: 1 MHz
CMRR - Common Mode Rejection Ratio: 80 dB
Ib - Input Bias Current: 2 nA
Vos - Input Offset Voltage: 125 uV
Minimum Operating Temperature: - 55℃
Maximum Operating Temperature: + 125℃
Mounting Style: Through Hole
Package / Case: CDIP-8
Packaging: Tube
Amplifier Type: Instrumentation Amplifier
Dual Supply Voltage: +/- 2.3 V to +/- 18 V
Height: 3.56 mm (Max)
Length: 10.29 mm (Max)
Maximum Dual Supply Voltage: +/- 18 V
Minimum Dual Supply Voltage: +/- 2.3 V
Operating Supply Voltage: +/- 2.3 V to +/- 18 V
Pd - Power Dissipation: 650 mW
Product: Instrumentation Amplifiers
Product Type: Instrumentation Amplifiers
Factory Pack Quantity: 48
Subcategory: Amplifier ICs
Supply Type: Dual
Width: 7.87 mm (Max)
Unit Weight: 0.745586 oz

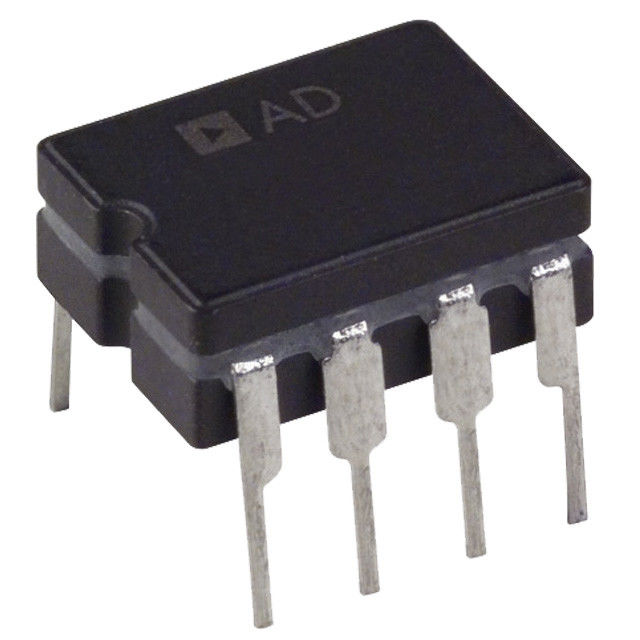

Product photo:



AD620SQ/883B Instrumentation Amplifiers IC LOW POWER IN AMP Chip 0
